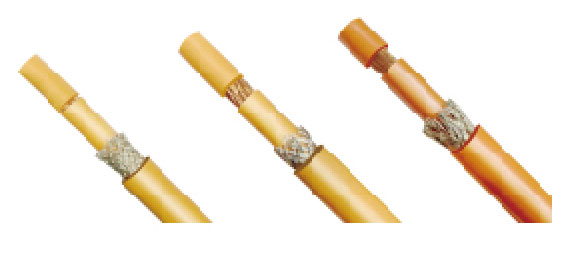

HSC800 is applied to the processing of the high-voltage coaxial cable of new energy. It can perform up to seven functions: outer jacket stripping， foil removing,shield cutting,shield flipping,shield brushing,secondary shield cutting and inner insulation stripping(also can half-stripping).It is a semiautomatic machine, easy to operate and with a user-friendly HMl.Each functional unit can be opened and closed independently, for example, it can also process cable harness without aluminum foil layer.The HSC800 has changed the original seven manual processing steps, into only one step in a fully-automatic sequence, greatly improved the production efficiency and quality, is a cost-effective solution.
To meet the processing needs of different customers, the extended version HSC800-L has been introduced. While retaining all the features of the standard version (-5), it extends the outer jacket stripping length from the original 2–120mm to 120–250mm, further broadening the equipment's application range and making it suitable for processing more types of wire harnesses.(Purchase HSC800-L,needs sample to confirm)

  HSC800-5/-L     HSC800-7                                                   HSC800-5/-L                                              HSC800-7

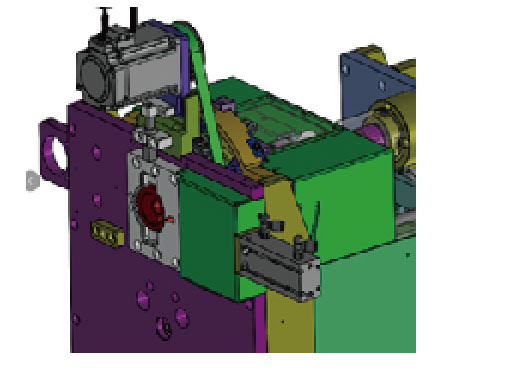

The HSC800 uses a modular design concept that enables quick changeover and easy maintenance.To switch wire harness processing of different wire diameters, only the punch tube set need to be replaced.

         HSC500-5/-L changeover list                                                                   HSC800-7 changeover list
