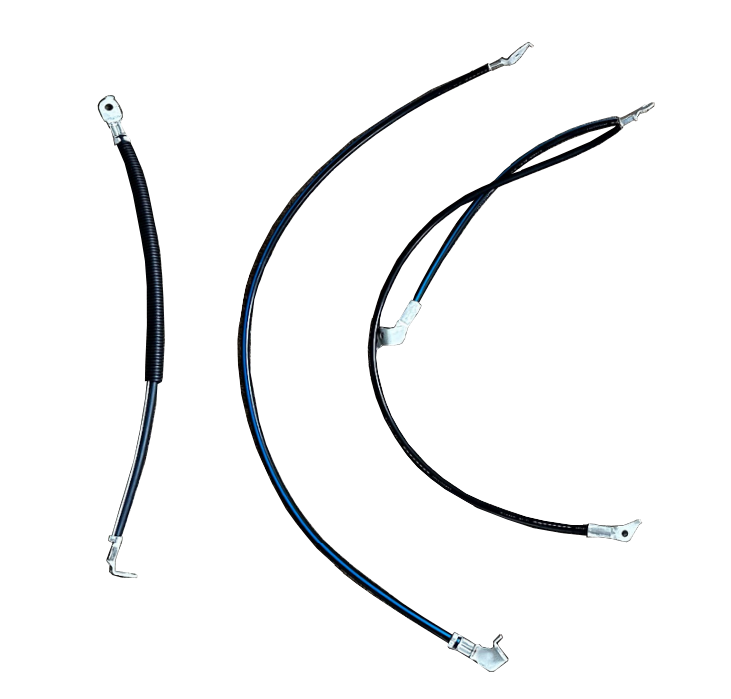

The battery cable production line TD-BC800 is specifically designed for automotive battery wire harnesses.
| Wire Diameter Range | 10-70mm² |
Cycle Time
| Signal cable≤10s(＜1m/ 2sides) ; Combing crimping≤12-14s/set |
| Changeover | ≤25min(Cable+Applicator) |
OP
| 1 Headcount/line |
Power
| 3P 380V AC |
| Air pressure | 5-7Bar |
| Dimension | 15M*4.5M*2M |
