TD LINE-XXX has been platformization/modularization.Mainly used in new energy HV wire harness, communication wire harness and sensor wire harness.lt can meet you various customization needs.

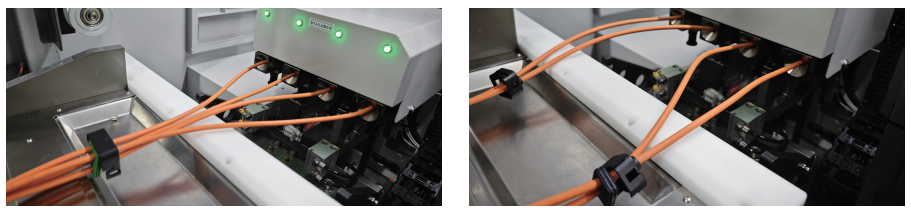

HV Small Cable 4 Wire Processing Platform

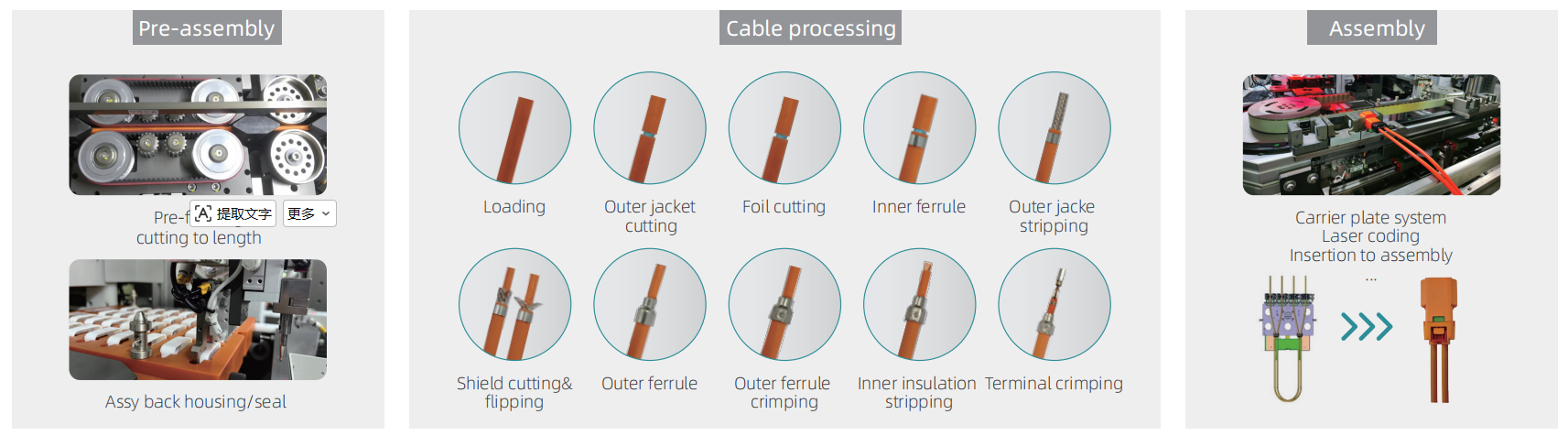

HV Big Cable 5-in-1 Line
HV Small Cable 4 Wire Processing Platform： HV Big Cable 5-in-1 Line：

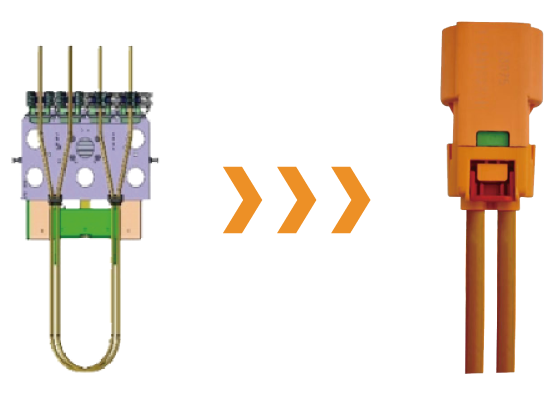

Expandable to preloading and housing assembly
HV Small Cable 4 Wire Processing Platform
| Cable Cross Section | 2.5-6mm²（with foil） |
| Cable Outer Diameter | 4.5-7mm |
| Jacket Stripping Length | 10-35mm |
| Shield Braid Cutting Length | 0-28mm |
| Inner Insulation Stripping Length | 0-10mm |
HV Big Cable 5-in-1 Line
| Cable Outer Diameter | 6-23mm |
| Foil Removal Length | 5-100mm |
| Cable Cross Section | 6-120mm² |
| Jacket Stripping Length | 5-100mm
|
| Inner Insulation Stripping Length | 5-95mm
|
Note:This machine can be compatible with more than 2.5mm² wire harness without aluminum foil (need sample testing)
