TD320-N can produce standard and special plugs . lt outputs the pins with directions in order according to the specific direction through the special blind pin feeding system.Through the 180degree rotation of the automobile connector,the blind pin is inserted into the connector in two directions.The production of the seal is xy system move the head to its position,then seals are fed by air from the track to head,finally insert it into connector hole.The two heads of seal or pin can both process together todouble the efficiency.
TD320-N is a equipment that is compatible with standard and special plugs.lt is mainly used for blocking holes in automobile connectors.Customer can choose connectol automatic or manual feeding. This can make the equipment more flexible, and at the same time to meet the production needs of customers for small batch and multi-products.One equipment can meet the needs of multiple directions, but also for customers to save the first phase of equipment investment.
| Plug Type | Standard/special plugs
|

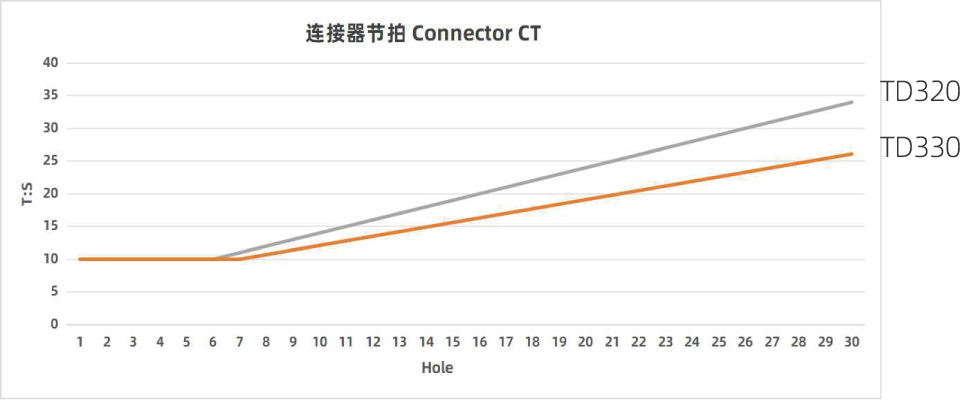

| Insertion CT | 1or 1.5S/Pin(Depend on plug type) |
| Power | 110-220V 50Hz 1500W ( 三孔插头 ) |
| Compressed Air | 5-8 Bar ( 10mm气管 ) |
| Dimension | L1580*W1450*H1800(Main body);L800*W1265*H1800(Connector loading);L1070*W590*H1100(FTC-4);L620*W590*H1100(FTC-2) |
| Net Weight | 830KG(Main body);176KG(Connector loading cart);110KG(FTC-2);200kg(FTC-4) |
lmportant Notice: TD recommends that samples be submitted in cases where there is doubt
as to the processing capabilities of a particular machine.
